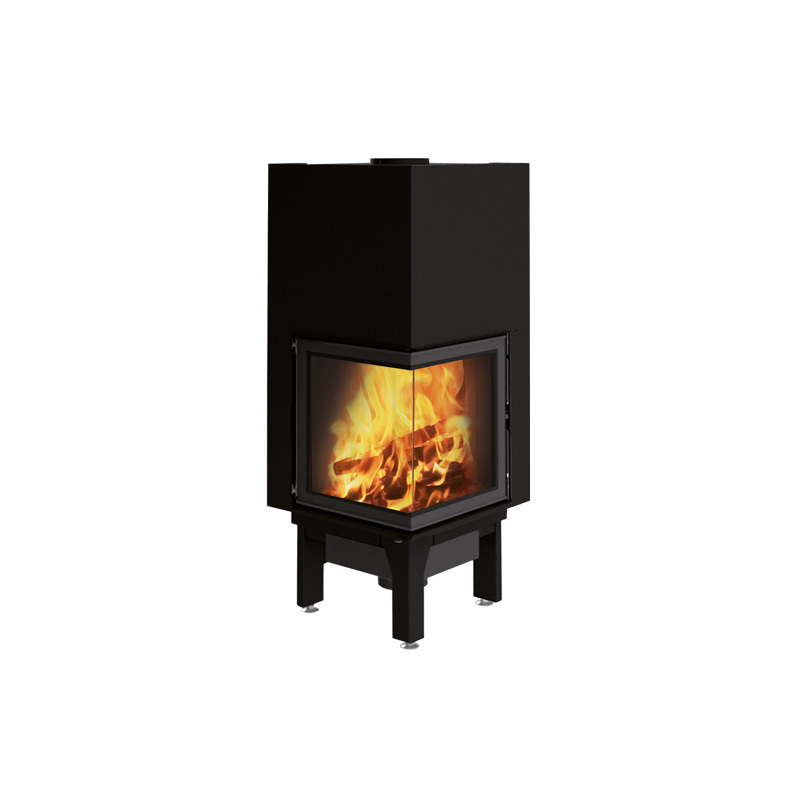

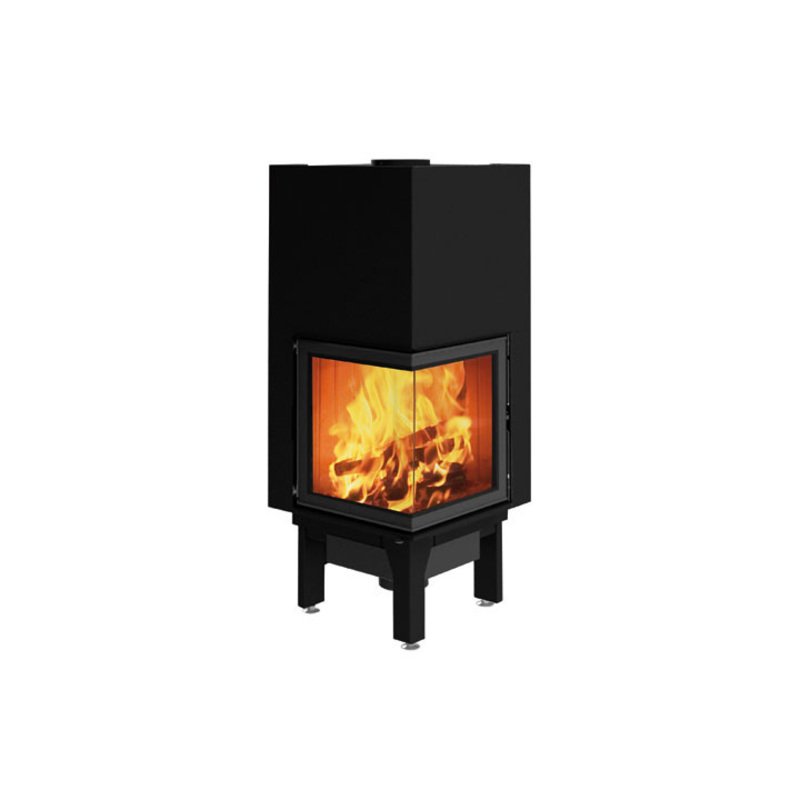

Wood corner fireplace with ecokeram lining for a great view of the fire.
• Sliding door, flat angled glass, ecokeram
• Glass cleaning system
• black or white Ecokeram combustion chamber
• 2 hot air outlets
• Hot air circulation system:
– Forced ventilation (V)
• Combustion-air supply divided into 3 circuits: primary air, post-combustion air, and turbo air (air from under the grill for quicker start up).
OPTIONAL
• Forced-ventilation conversion kit available: Air box to insert under the main unit
| Technical data | min/max | |
| width | cm | 60 |
| depth | cm | 60 |
| height | cm | 148 |
| fireplace mouth measurement (W x D x H) | cm | 40x40x49 |
| useful heat output | kW | 12,4 |
| efficiency | % | 81,8 |
| fuel consumption (wood) | kg/h | 3,3 |
| Ø combustion product outlet | cm | 18 |
| Ø external air intake | cm | 16 |
| total weight | kg | 230 |
| vol. that can be heated (insul. env. by Law 10/91) | m³ | 325 |
