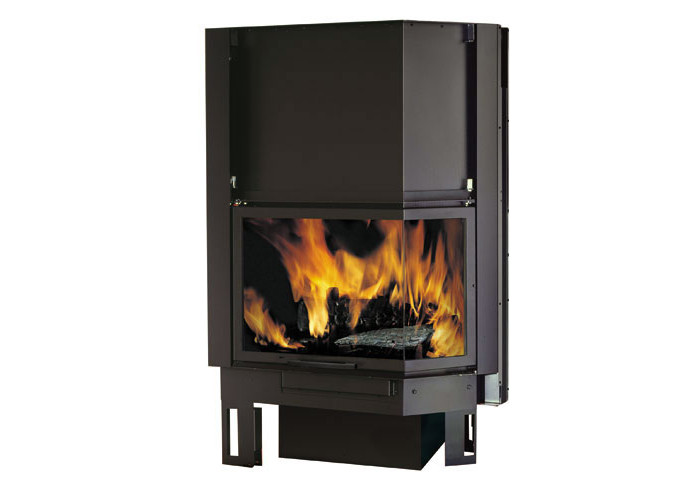

High performance monobloc stove with sliding door, extremely rational and simple. This is a truly aerothermal heating machine. It produces large amounts of hot air that can also be directed into adjacent rooms with flexible aluminum pipes. The hearth offers a full view of the fire thanks to the two sides with ceramic glass. It is ideal for placing in a corner, left or right.
The regulation of primary and secondary combustion is done with a controller.
The circulation of the heating air can be done:
The circulation of the heating air can be done:
– by natural attraction (N)
– by using the special fan kit (V).
PRODUCT PROPERTIES
 – smoke outlet top Ø 20 cm, female |
 – natural heat transfer |
 – ventilation system |
 – hot air outlet on top Ø 14 |
| bubble support (right or left)* | hearth frame (right or left)* |
| hot air duct kit UNO/bis, DUE/bis, TRE/bis* | Fan kit (also installed after installation but before lining)* |
| expansion for fireplaces with smoke outlet* | spiral Ø 14 for hot air vents* |
| spiral Ø 20 for external air intake* |
| SPECIFICATIONS | |
| Width (cm) | 95 |
| Depth (cm) | 66 |
| Height (cm) | 155 |
| Useful power (wood) (kW) | 15.3 |
| Yield (wood) (%) | 75.2 |
| Consumption (wood) (kg/h) | 4.4 |
| Hob opening dimensions (W x D x H) (cm) | 78x48x54 |
| Smoke outlet duct cross-section (cm) | 20 |
| Air supply duct cross-section (cm) | 20 |
| Total weight (kg) | 248/252 |
| Heated volume (m³) | 400 |
Gallery
